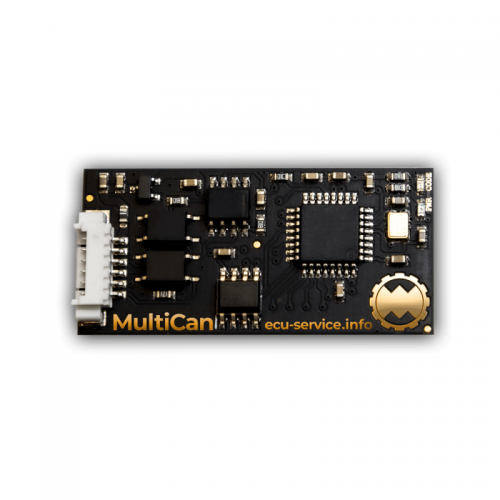

MULTI CAN EMULATOR

Renault ISK Decoder, Renault, Nissan, Dacia, Citroen, Peugeot, PSA Scanner, Fiat, Alfa Romeo, Lancia, Iveco, VAG immo 4, VAG immo 5 (Volkswagen Audi, Seat, Skoda ECU + TCU)

The new version contains:

- built-in 95xxx external memory

- CAN Relay - it can be used when is a problem with CAN

- you can write PIN, SYNC, ISK code from Renault, Nissan, PSA, Fiat, Iveco, Alfa, VAG immo 4/5 (no need changes in Ecu)

It is an innovative product on the IMMO Automotive brand market.

The emulator automatically recognizes the brand and the type of the engine ECU. Thanks to this, it supports all ECUs in the above-mentioned brands.

MultiCAN Emulator operates the engine ECU with a CAN speed 50kb, 250kb, 500kb.

The ISK code calculation function is payable  <<ISK Decoder TOKEN>>

SUPPORTED ECUs

- Renault ISK Decoder:
BOSCH MD1CS006
CONTINENTAL EMS3125
CONTINENTAL EMS3140
CONTINENTAL EMS3160
CONTINENTAL EMS3161
CONTINENTAL SID307
CONTINENTAL SID309
CONTINENTAL SID310
CONTINENTAL SID321

- Renault
BOSCH EDC15
BOSCH EDC15 C13
BOSCH EDC16 C3
BOSCH EDC16 CP33
BOSCH EDC16 C36
BOSCH EDC16 C41
BOSCH EDC17
BOSCH EDC17 C42
BOSCH EDC17 C84
BOSCH ME17.9.20
CONTINENTAL EMS3110
CONTINENTAL EMS3120
CONTINENTAL EMS3125
CONTINENTAL EMS3150
CONTINENTAL EMS3155
CONTINENTAL SID305
CONTINENTAL SID307
CONTINENTAL SID309
CONTINENTAL SID310
HITACHI HI-BED434
HITACHI HI-MEC92
HITACHI EWR20
HITACHI MEC32-080
HITACHI MEC37-510
HITACHI MEC37-670
HITACHI MEC93-090
HITACHI MEC121-780
MAGNETI MARELLI IAW 5NR T1
MAGNETI MARELLI IAW 5NR2
SIEMENS EMS3134
SIEMENS SID301
SIEMENS SIM32
SIEMENS SIRIUS 32
SIEMENS SIRIUS 34
DELPHI DCM 1.2
DELPHI DCM 3.4
DELPHI DDCR
SAGEM S2000
SAGEM S3000
DENSO ISUZU
VALEO V40
VALEO V42
VALEO V50
and other....

- Nissan
BOSCH EDC16 C41
EDC16 CP33
EDC17 CP51
EDC17 C42
CONTINENTAL EMS3155
CONTINENTAL SID305
CONTINENTAL SID307
CONTINENTAL SID310
CONTINENTAL SID321
SIEMENS SID303
HITACHI MEC32-211
HITACHI MEC940-160
HITACHI MEC940-240
HITACHI MEC940-480
HITACHI MEC932-110
and other....

- Citroen, Peugeot (PSA):
BOSCH EDC15
BOSCH EDC16
BOSCH EDC17
BOSCH EDC17 C60
BOSCH EDC17 CP42
BOSCH ME7.4.5
BOSCH MEV17.4
BOSCH MED17.4.4
BOSCH MD1 CS003 - you need to know ECU PIN code - option PSA PIN scanner
BOSCH MG1 CS042 - you need to know ECU PIN code - option PSA PIN scanner
BOSCH MG1 CS051 - you need to know ECU PIN code - option PSA PIN scanner
DELPHI DCM 3.4
DELPHI DCM 3.5
DELPHI DCM 6.2A
DELPHI DCM 6.2C
DELPHI DCM 7.1A - you need to know ECU PIN code - PSA PIN scanner
SIEMENS SID201
SIEMENS SID803
SIEMENS SID803A
SIEMENS SID804
SIEMENS SID806
SIEMENS SID807
SIEMENS SID807 EVO
MAGNETI MARELLI IAW 48P2
MAGNETI MARELLI IAW 6LP
MAGNETI MARELLI  IAW 6LPB
VALEO V34.1
VALEO V34.3
VALEO V46.1
VALEO V46.11
VALEO VD56.1 - you need to know ECU PIN code - PSA PIN scanner
VALEO VD56.12 - you need to know ECU PIN code - PSA PIN scanner
VALEO J34P
CONTINENTAL SID208
SAGEM S2PM
SAGEM S2000
and other....

- Fiat, Alfa Romeo, Iveco:
BOSCH EDC16 C8
BOSCH EDC16 C34
BOSCH EDC16 C39
BOSCH EDC17 C49
BOSCH EDC17 C69
BOSCH EDC17 CP52
BOSCH EDC17 CP52 V1
BOSCH EDC17 CP52 V2
BOSCH ME17.3.0
BOSCH ME7.3.1
BOSCH ME7.3.4
BOSCH ME7.9.10
BOSCH MD1CS069
BOSCH MD1CS199
DELPHI DCM 6.2A
DELPHI DCM 6.2C
DELPHI DCM 7.1B - only service!
MAGNETTI MARELLI IAW 5SF3
MAGNETTI MARELLI IAW 5SF4
MAGNETTI MARELLI IAW 5SF.L0
MAGNETTI MARELLI IAW 5NF.T1
MAGNETTI MARELLI IAW 5NF.T2
MAGNETTI MARELLI IAW 9GF.xx
MAGNETTI MARELLI MJD 6JF
MAGNETTI MARELLI MJD 8Fx
MAGNETTI MARELLI MJD 9DF.xx
MAGNETTI MARELLI MM10JA
MAGNETTI MARELLI 11GFAC
VISTEON DCU-102
CONTINENTAL SID208
MOPAR/CONTINENTAL GPEC4LM - Relay
and other....

- VAG IMMO 4/5 (Volkswagen, Audi, Seat, Skoda)
CONTINENTAL SIMOS 9.1
CONTINENTAL PCR2.1
DELPHI DCM 6.2V
MAGNETI MARELLI 4HV MM
BOSCH MED9.5.10
SIEMENS PPD1.x
and other....

See the instructions in the section MANUALS:  https://manual.ecu-service.info/MULTI_CAN/MANUALS/mainmenu.html

Watch the videos:

 The product made and developed by ECU SERVICE.
